Primary hyperoxaluria, or PH, is a family of rare genetic disorders causing hepatic oxalate overproduction that can result in progressive kidney damage and failure.1

Primary hyperoxaluria, or PH, is a family of rare genetic disorders causing hepatic oxalate overproduction that can result in progressive kidney damage and failure.1

Hyperoxaluria is a condition defined by increased urinary excretion of oxalate. Oxalate is a metabolic end product that is not naturally broken down. It can also be ingested through food and has no known function in the body.2,3

In PH, oxalate is produced by the liver through dysregulation of the glyoxylate metabolic pathway, where hepatic lactate dehydrogenase, or LDH, converts overproduced glyoxylate to oxalate.1,4-6

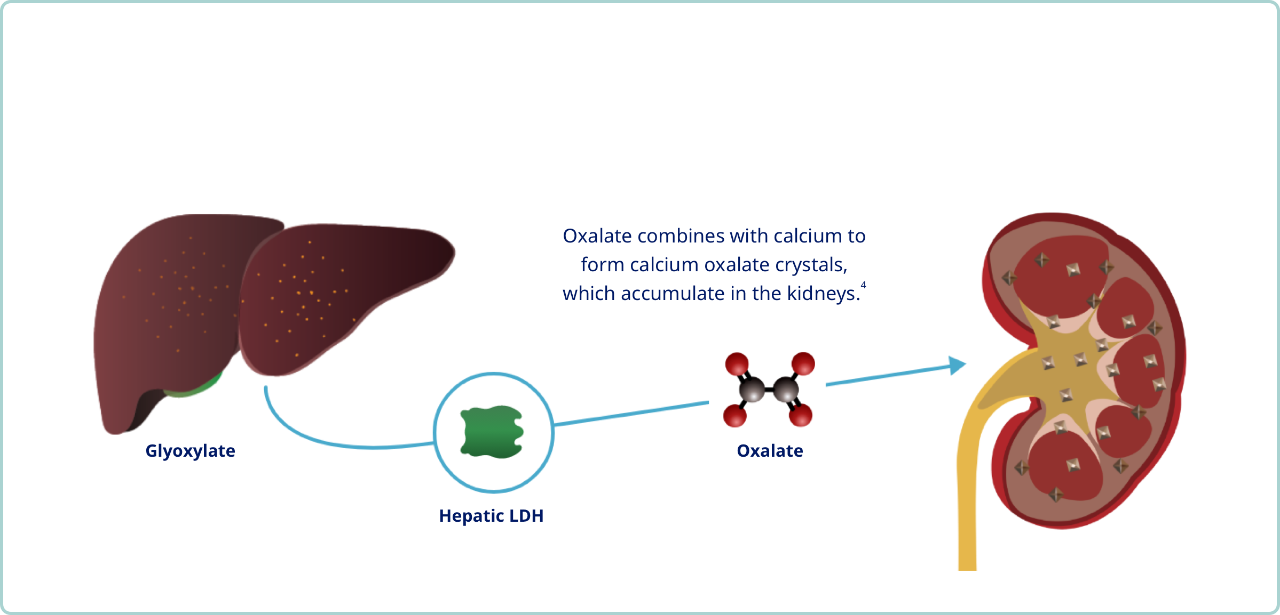

Oxalate production graphic

Oxalate combines with calcium to form calcium oxalate crystals, which accumulate in the kidneys.4

Calcium oxalate crystals combine to form kidney and bladder stones in PH 3

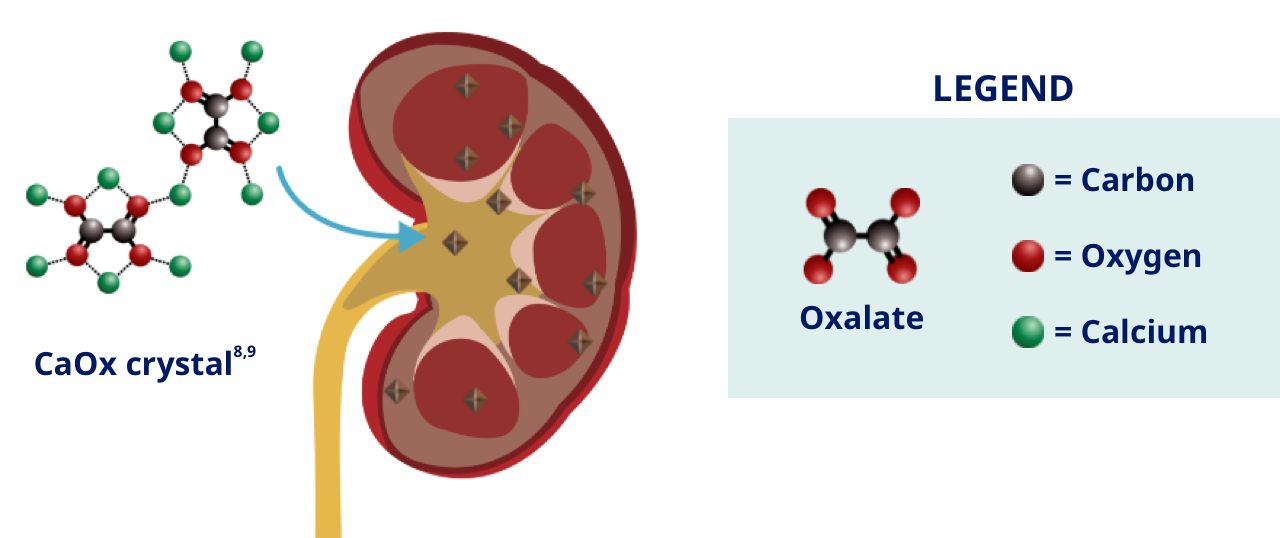

When too much oxalate accumulates in the kidneys, it binds with calcium to form CaOx crystals4,7

How kidney and bladder stones form

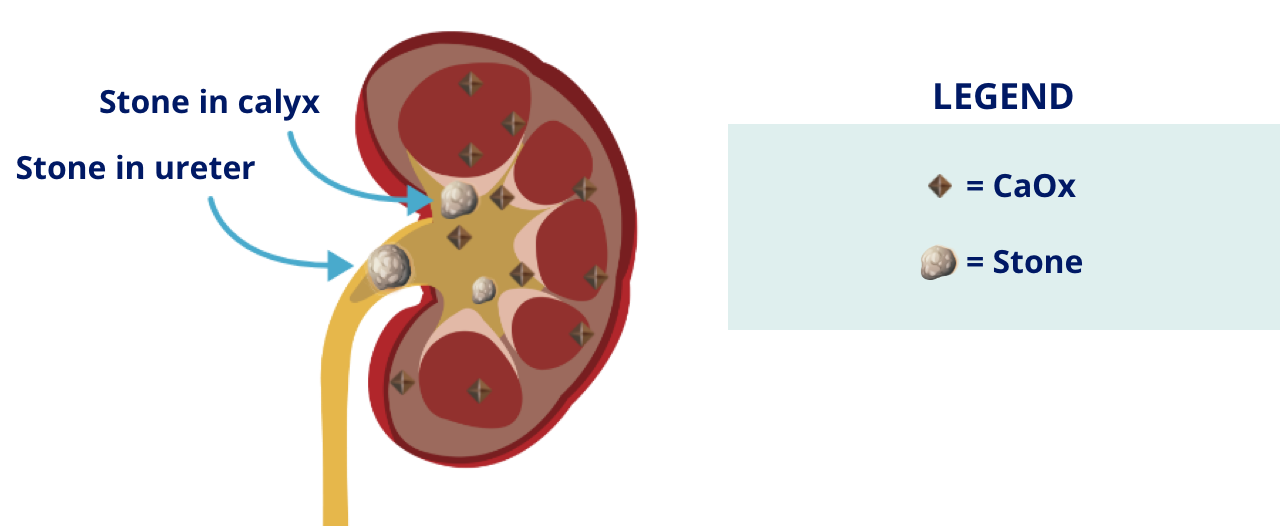

CaOx crystals aggregate to form stones in the kidneys and urinary tract, and also distribute throughout the kidney tissue, causing nephrocalcinosis3

How kidney and bladder stones form

As PH advances, progressive nephrocalcinosis and kidney damage may lead to end-stage kidney disease and systemic oxalosis

Progressive nephrocalcinosis, inflammation, and interstitial fibrosis may lead to end-stage kidney disease (ESKD).4,10

Graphic depicting how PH advances

Systemic oxalosis occurs when glomerular filtration rate (GFR) drops below 30 to 45 mL/min and oxalate is no longer adequately filtered by the kidneys. At this point, CaOx crystals begin to deposit in tissues of other organs such as the heart, bone, eyes, and skin.1,10-13

Graphic depicting how PH advances

There are 3 known subtypes of primary hyperoxaluria, all of which can cause recurrent kidney stones and progressive kidney damage14-18

There are 3 known subtypes of primary hyperoxaluria, all of which can cause recurrent kidney stones and progressive kidney damage14-18

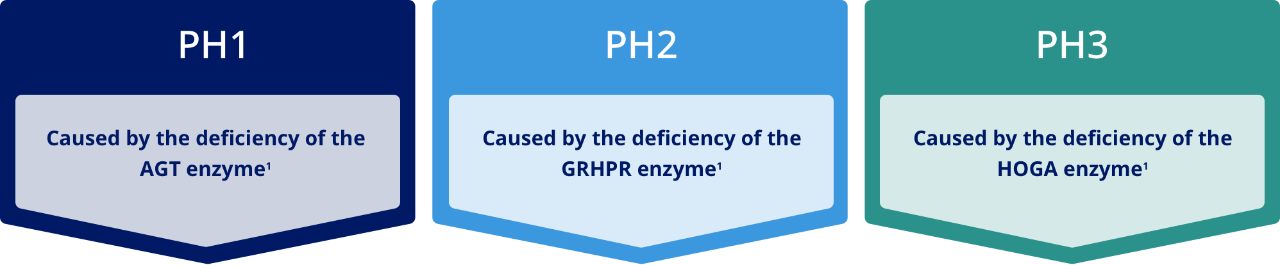

Three subtypes of PH

In each of these subtypes of primary hyperoxaluria, hepatic lactate dehydrogenase, or LDH, catalyzes the conversion of glyoxylate to oxalate, converting this metabolite to a disease-causing agent.4

Abbreviations: AGT, alanine-glyoxylate aminotransferase; GRHPR, glyoxylate reductase-hydroxypyruvate reductase; HOGA, 4-hydroxy-2-oxoglutarate aldolase.

Approximately 11% of patients with signs and symptoms consistent with a diagnosis of PH do not have 1 of the 3 known PH mutations. These patients likely have a PH mutation that has not been discovered yet.14

Kidney stones are the hallmark of PH1, PH2, and PH3

Stone burden

  • PH1: 73%-100% of patients have stones19,20
  • PH2: 83%-100% of patients have stones, many before age 4 years16,21-22
  • PH3: Nearly 100% of patients have stones, many before age 4 years17,23-25


PH stone appearance26-28

  • Light whitish or pale yellow surface color
  • Loose aggregations of different-sized crystals
  • Approximately 1.6 cm (0.5 -4.5 cm) in size28

Stone burden

  • PH1: 73%-100% of patients have stones19,20
  • PH2: 83%-100% of patients have stones, many before age 4 years16,21-22
  • PH3: Nearly 100% of patients have stones, many before age 4 years17,23-25


PH stone appearance26-28

  • Light whitish or pale yellow surface color
  • Loose aggregations of different-sized crystals
  • Approximately 1.6 cm (0.5 -4.5 cm) in size28

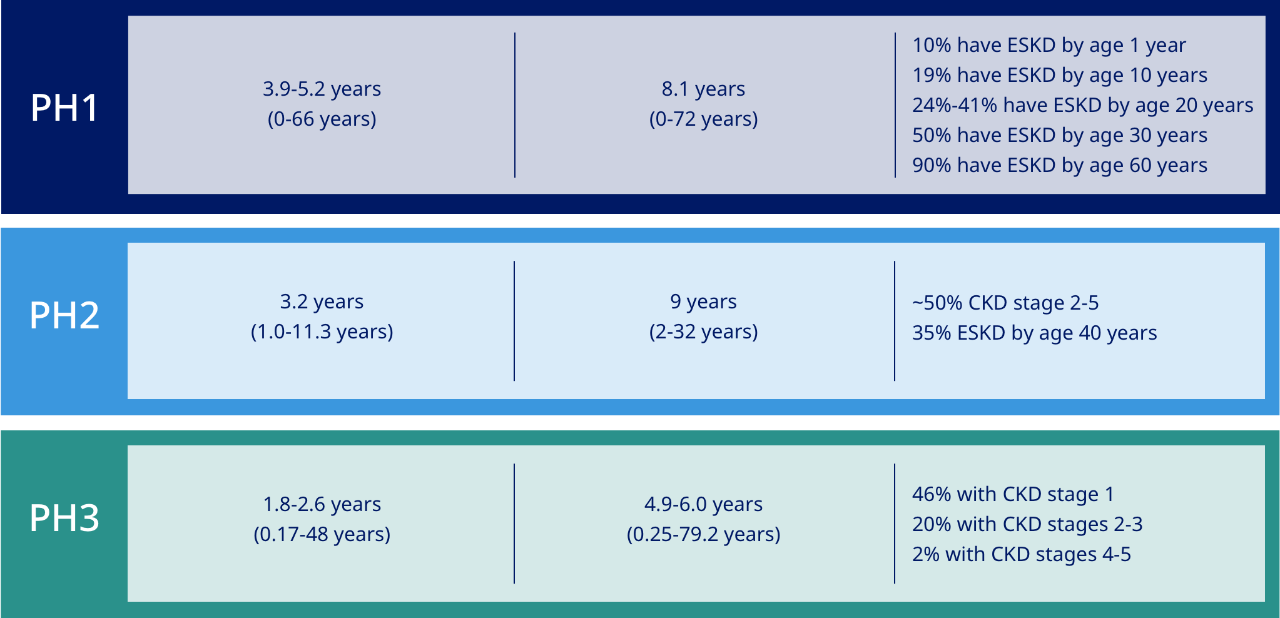

Primary hyperoxaluria often has an early onset, but patients can vary in symptom timing and kidney function

Symptom Onset14,16,17,29-30
Median (range)

Age at Diagnosis16,29-31
Median (range)

Kidney Function14-16,29,32

PH symptom timing

Patients are often diagnosed years after symptoms begin33

Abbreviations: CKD, chronic kidney disease; ESRD, end-stage renal disease.

Primary hyperoxaluria often has an early onset, but patients can vary in symptom timing and kidney function

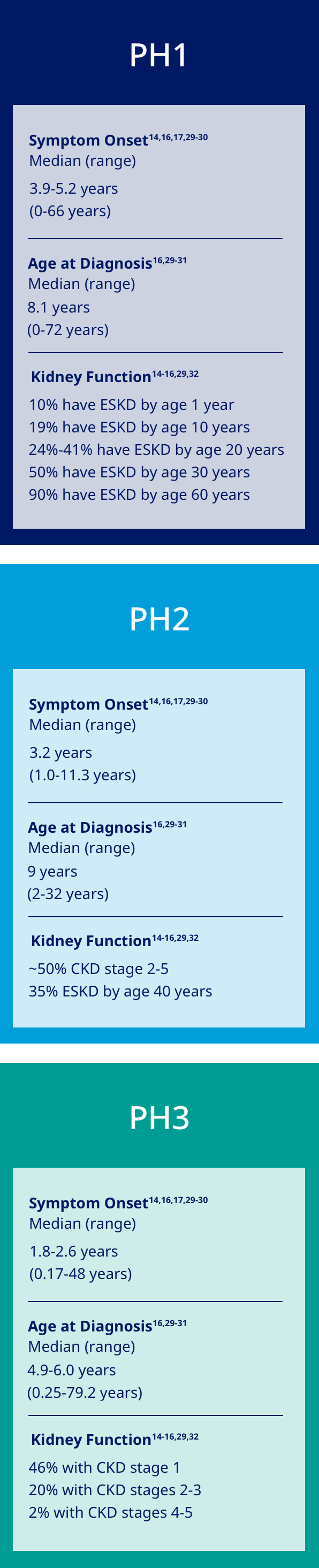

PH Symptom Timing mobile

Patients are often diagnosed years after symptoms begin33

Abbreviations: CKD, chronic kidney disease; ESRD, end-stage renal disease.

All subtypes of primary hyperoxaluria can have a significant impact on kidney function.14-18

Primary hyperoxaluria is more common than previously thought and significantly underdiagnosed

Primary hyperoxaluria is more common than previously thought and significantly underdiagnosed

Primary hyperoxaluria affects an estimated 8,700 people in the United States.14,34

Estimated US prevalence from clinical studies14,34

Estimated United States  prevalence from clinical studies
Estimated United States  prevalence from clinical studies number of people

<3:1,000,000 or ~1,000 people

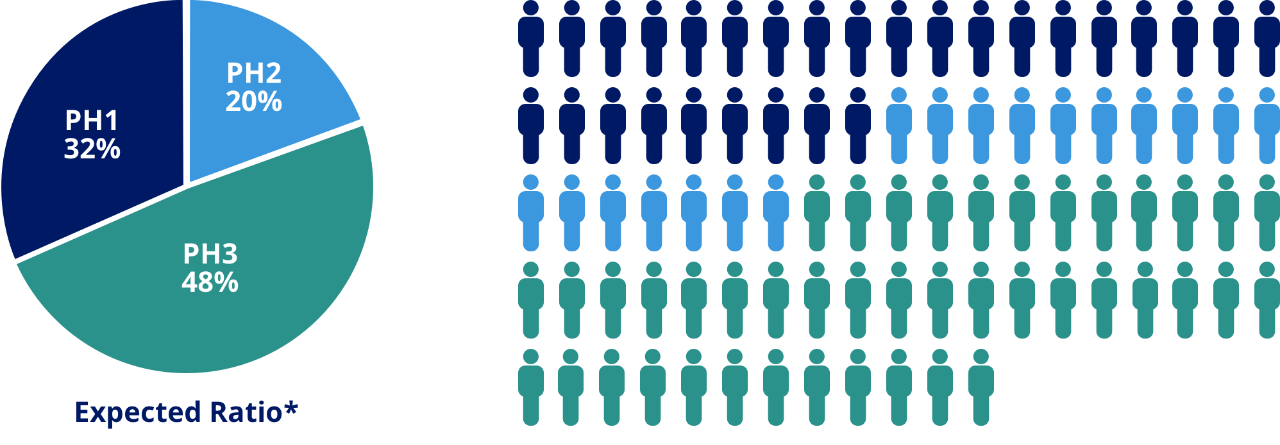

Estimated US prevalence from genetic studies14,34

Estimated United States prevalence from genetic studies

1:38,600 or ~8,700 people

>80% of patients remain undiagnosed14

*Prevalence based on PH mutant alleles found in the National Heart, Lung, and Blood Institute Exome Sequencing Project (NHLBI ESP) and calculated according to Hardy-Weinberg equilibrium for each PH type using the sum of all alternate PH1, PH2, or PH3 alleles (known and scored as pathogenic) and all wild-type alleles.1

PH1 ~2,700
PH2 ~1,700
PH3 ~4,200

one person icon = 100 people

Estimated US prevalence from clinical studies14,34

<3:1,000,000 or ~1,000 people

Estimated United States  prevalence from clinical studies

Estimated US prevalence from genetic studies14, 34

1:38,600 or ~8,700 people

>80% of patients remain undiagnosed14

Estimated United States prevalence from genetic studies

*Prevalence based on PH mutant alleles found in the National Heart, Lung, and Blood Institute Exome Sequencing Project (NHLBI ESP) and calculated according to Hardy-Weinberg equilibrium for each PH type using the sum of all alternate PH1, PH2, or PH3 alleles (known and scored as pathogenic) and all wild-type alleles.1

Though PH1 is the most well-known, all PH subtypes are likely undiagnosed.1
